Пассивный динамик

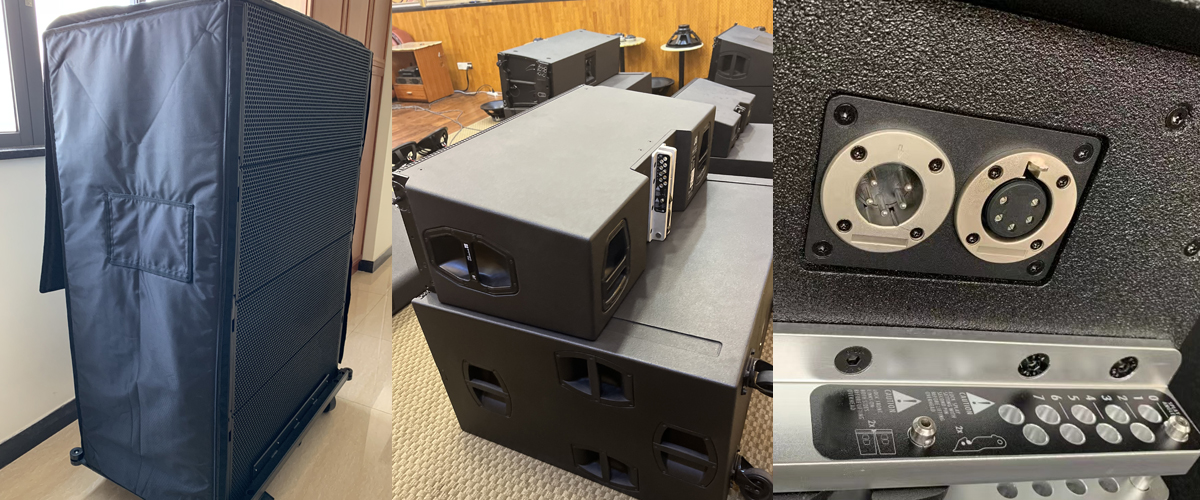

JT-08 Large Format 3-way Double 12 Inch Line Array Speaker
Предмет №: JT-08
Type: Passive
Drivers: 2 x 12" LF/ 1 x 10" MF/2 x 1.4"HF
Nominal impedance: 6 Ω (LF) / 12 Ω (MHF)
Frequency Response (-5 dB standard): 48 Hz - 17 kHzHz
Drivers: 2 x 12" LF/ 1 x 10" MF/2 x 1.4"HF
Nominal impedance: 6 Ω (LF) / 12 Ω (MHF)
Frequency Response (-5 dB standard): 48 Hz - 17 kHzHz
ОПИСАНИЕ
| JT-08 Line Array Specification | |
| Frequency response (-5 dB standard) | 48 Hz - 17 kHzHz |
| Max. sound pressure | 145 dB |
| Configuration | Large format 3-way line array loudspeaker |
| Nominal impedance | 6 Ω (LF) / 12 Ω (MHF) |
| Power handling capacity LF (RMS/peak 10 ms) | 500/2000 W |
| Power handling capacity MHF (RMS/peak 10 ms) | 200/800 W |
| Nominal dispersion angle (h x v) | 80°² |
| Splay angle settings | 0 - 7° (1° increment) |
| Components | 2 x 12" driver / 1 x 10" driver 2 x 1.4" exit compression driver passive crossover network |
| Connections | 2 x NLT4 F/M optional 2 x EP5 or 2 x NL8 |
| Dimensions (H x W x D) | 360 x 1100 x 570 mm 14.2 x 43.3 x 22.4" |
| Weight | 60 kg/132 lb |
JT-08 3-Way double 12inch line array Feature:
► 2x12" LF; 1X10" MF; 2X3"HF neodymium drivers.
► High quality compact birch wood enclosure.
► Large format 3-way line array loudspeaker.
► First grade Russian birch plywood and muti-layer spray polyured waterproofing coating.
► It can be used in columns of purely J8 loudspeakers or combined with JT SUB.
Driver Detail:
 |
 |
 |
| LF | MF | HF |
Suggest Matching
 |
 |
|||
| JT-SUB | L-12x |
