Усилитель для динамика с линейным массивом

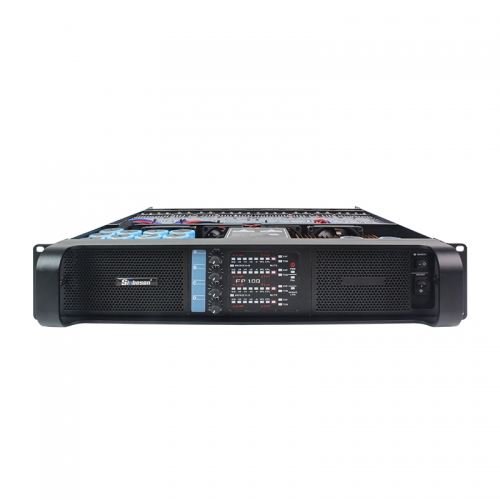

Усилитель мощности Sinbosen FP10000Q для 4 двойных 15-дюймовых динамиков
Предмет №: FP10000Q 8 Rear Fans
Model: FP10000Q
8Ω Stereo Power (RMS): 1,350W X 4CH
4Ω Stereo Power (RMS): 2,100W X 4CH
8Ω Stereo Power (RMS): 1,350W X 4CH
4Ω Stereo Power (RMS): 2,100W X 4CH
ОПИСАНИЕ
| FP10000Q | FP9000 | FP14000 | FP6000Q | FP7000 | FP20000Q | FP22000Q | |
|---|---|---|---|---|---|---|---|
| 8 ohm Stereo Power (RMS) | 1350WX4 | 1800WX2 | 2400WX2 | 700WX4 | 1500WX2 | 2200WX4 | 2500WX4 |
| 4 ohm Stereo Power (RMS) | 2100WX4 | 3000WX2 | 4400WX2 | 1300WX4 | 2800WX2 | 4000WX4 | 4650WX4 |
| 8 ohm Bridged Power (RMS) | 4200WX2 | 6000W | 8800W | 2500WX2 | 5600W | 8000WX2 | 9300WX2 |
| 4 ohm Bridged Power (RMS) | 5000WX2 | 9000W | 14000W | 3000WX2 | 7000W | 9000WX2 | 15000WX2 |
| Frequency Response(+o/-0.3dB,1W/8Ω)： | 20 Hz - 34 kHz | ||||||
| THD 20 Hz - 20 kHz for 1W: | <0.1% | ||||||
| Signal-to-Noise Ratio: | >112 dBA | ||||||
| Channel separation (Crosstalk) at 1 kHz ： | >70 dB | ||||||
| Input Connectors (per channel)： | 3 pin XLR, electronically balanced | ||||||
| Output Connectors (per channel)： | Binding Posts 2-pole | ||||||
| Class： | TD | ||||||
| TourClass Protection： | ACL, IGM, AutoRamp, short circuit, DC voltage, turn on/off transient, current inrush, sub/ultrasonic input | ||||||
| Operating voltage, 220V / 110V nominal： | 180-240 V / 90-130 V selectable | ||||||
| Voltage Gain(dB)： | 23, 26, 29, 32, 35, 38, 41, 44 dB selectable | ||||||
| Input impedance： | 20 kOhm | ||||||
| Level adjustment (per ch.)： | Front panel potentiometer, 31 positions detented from -inf to 0 dB | ||||||
FEATURE

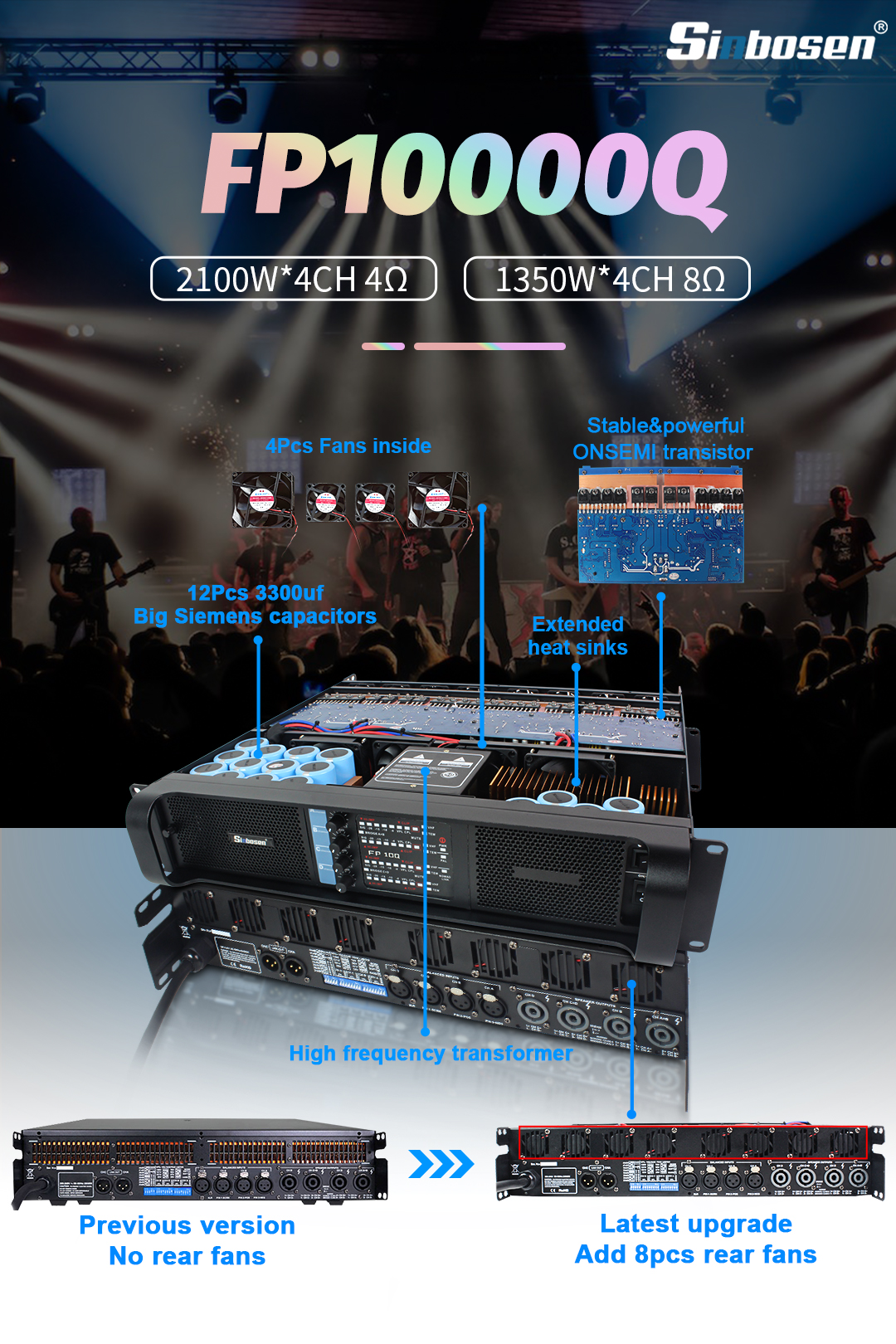

►4 Channel Class TD Switching power amplifier.
►4*2100 Watts into 4Ohms,4*1350 Watts into 8Ohms.
►Creat SUPER sound quality,good for single15"/dual15" speaker.
►Separately controllable on Gain
►Scalable Voltage Peak Limiter (VPL)
►Bridge-mode operation for Touring Applications
►Comprehensive protection scheme
►Use Original Siemens high-quality capacitor 3300uf 200V.
►Use Original ONSEMI transistor.
►Neutrik XLR*/speakon connectors.
►High quality fans form TAIWAN.
