Усилитель DSP для динамиков линейного массива

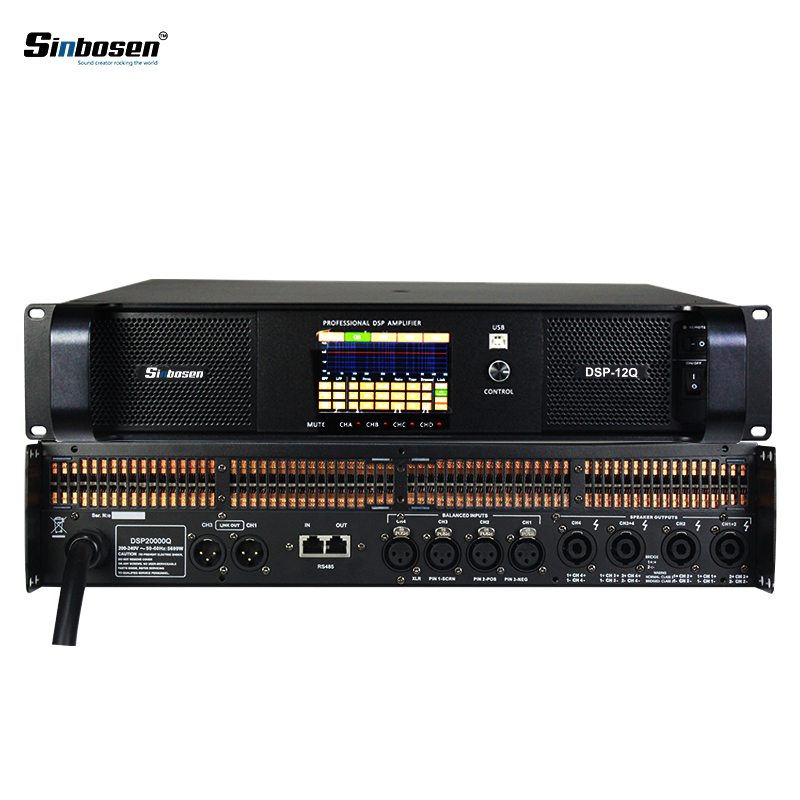

Sinbosen DSP12000Q 1500 Вт 4-х канальный высококачественный профессиональный усилитель мощности
Предмет №: DSP120000Q
Модель: DSP12000Q Канал: 4-канальный усилитель мощности Выходная мощность: 8 Ом Мощность стерео (RMS): 1500 Вт 4CH 4 Ом Мощность стерео (RMS): 2800 Вт 4CH Класс: TD Сертификация: CE, ROHS, TUV Гарантия: 3 года Специальный сервис: OEM предлагаемая услуга
ОПИСАНИЕ
Sinbosen Audio DSP Series Amplifier
| DSP10000Q | DSP12000Q | DSP20000Q | |||||
| 8 ohm Stereo Power (RMS) | 1300WX4 | 1500WX4 | 2200WX4 | ||||
| 4 ohm Stereo Power (RMS) | 2100WX4 | 2800WX4 | 4000WX4 | ||||
| 2 ohm Stereo Power (RMS) | 2500WX4 | 3500WX4 | 4500WX4 | ||||
| 8 ohm Bridged Power (RMS) | 4200WX2 | 5600WX2 | 8000WX2 | ||||
| 4 ohm Bridged Power (RMS) | 5000WX2 | 7000WX2 | 9000WX2 | ||||
| Frequency Response(+o/-0.3dB,1W/8Ω)： | 20 Hz - 34 kHz | ||||||
| THD 20 Hz - 20 kHz for 1W: | <0.1% | ||||||
| Signal-to-Noise Ratio: | >112 dBA | ||||||
| Channel separation (Crosstalk) at 1 kHz ： | >70 dB | ||||||
| Input Connectors (per channel)： | 3 pin XLR, electronically balanced | ||||||
| Output Connectors (per channel)： | Binding Posts 2-pole | ||||||
| Class： | TD | ||||||
| TourClass Protection： | ACL, IGM, AutoRamp, short circuit, DC voltage, turn on/off transient, current inrush, sub/ultrasonic input | ||||||
| Operating voltage, 220V / 110V nominal： | 180-240 V / 90-130 V selectable | ||||||
| Voltage Gain(dB)： | 23, 26, 29, 32, 35, 38, 41, 44 dB selectable | ||||||
| Input impedance： | 20 kOhm | ||||||
| Level adjustment (per ch.)： | Front panel potentiometer, 31 positions detented from -inf to 0 dB | ||||||
Some users prefer DSP series amplifier.They don't need to spare more time to install the extra audio processor.DSP series amplifier audio system more lighter ,simpler to operate .And we create the DSP series based on FP series amplifier.
| Touch screen | Software control | Multiple power amplifier controls |
| Amplifier built-in processor,4 inch size led screen can touch,control the amplifier sound effect | DSP amplifier also cintrol by PC,through software can more precise adjustment dsp processor | One PC can independent control serveral dsp amplifier at the same time |
►4 Kanal Class TD Schaltleistungsverstärker mit DSP
►4 x 2.800 Watt an 4 Ohm, 4 x 1.450 Watt an 8 Ohm
►Erstellen Sie SUPER Klangqualität
►Steuern Sie den Soundeffekt per Touch auf dem vorderen 4" LED-Bildschirm
►Oder steuern Sie den Soundeffekt per Computer
►Einfache DSP-Software, keine Installation erforderlich, einfache Bedienung
►Bridge-Mode-Betrieb für Touring-Anwendungen
►Umfassendes Schutzkonzept
►Verwenden Sie den hochwertigen Siemens-Originalkondensator 3300uf 200V
►Original ONSEMI Transistor verwenden
►Neutrik XLR*/Speakon-Anschlüsse
 |
 |
 |
 |
 |
 |
