Усилитель для динамика с линейным массивом
Профессиональный сценический усилитель Dj Настройка Профессиональный усилитель

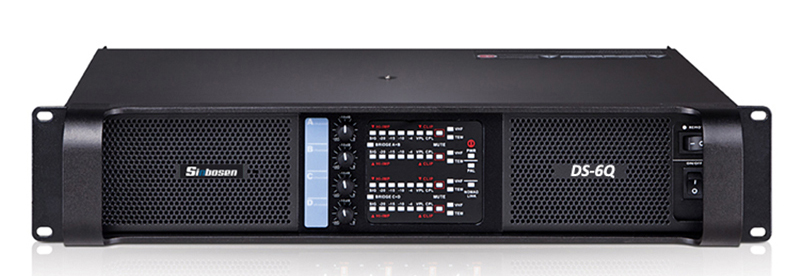

Предмет №: DS-6Q
Model: DS-6Q
8Ω Stereo Power (RMS): 625W X 4CH
4Ω Stereo Power (RMS): 1,250W X 4CH
Certification: CE, ROHS
Warranty: 3 Years
Special service: OEM service offered
8Ω Stereo Power (RMS): 625W X 4CH
4Ω Stereo Power (RMS): 1,250W X 4CH
Certification: CE, ROHS
Warranty: 3 Years
Special service: OEM service offered
ОПИСАНИЕ
| DS-6Q | DS-9K | DS-14K | DS-7K | DS-10Q | DS-20Q | DS-22Q | |
| 8 ohm Stereo Power (RMS) | 625WX4 | 1800WX2 | 2400WX2 | 1500WX2 | 1350WX4 | 2200WX4 | 2500WX4 |
| 4 ohm Stereo Power (RMS) | 1250WX4 | 3000WX2 | 4400WX2 | 2800WX2 | 2100WX4 | 4000WX4 | 4650WX4 |
| 8 ohm Bridged Power (RMS) | 2500WX2 | 6000W | 8800W | 5600W | 4200WX2 | 8000WX2 | 9300WX2 |
| 4 ohm Bridged Power (RMS) | 3000WX2 | 9000W | 14000W | 7000W | 5000WX2 | 9000WX2 | 15000WX2 |
| Frequency Response(+o/-0.3dB,1W/8Ω)： | 20 Hz - 34 kHz | ||||||
| THD 20 Hz - 20 kHz for 1W: | <0.1% | ||||||
| Signal-to-Noise Ratio: | >112 dBA | ||||||
| Channel separation (Crosstalk) at 1 kHz ： | >70 dB | ||||||
| Input Connectors (per channel)： | 3 pin XLR, electronically balanced | ||||||
| Output Connectors (per channel)： | Binding Posts 2-pole | ||||||
| Class： | TD | ||||||
| TourClass Protection： | ACL, IGM, AutoRamp, short circuit, DC voltage, turn on/off transient, current inrush, sub/ultrasonic input | ||||||
| Operating voltage, 220V / 110V nominal： | 180-240 V / 90-130 V selectable | ||||||
| Voltage Gain(dB)： | 23, 26, 29, 32, 35, 38, 41, 44 dB selectable | ||||||
| Input impedance： | 20 kOhm | ||||||
| Level adjustment (per ch.)： | Front panel potentiometer, 31 positions detented from -inf to 0 dB | ||||||
DS-6Q Feature:
· 4 Channel Class TD Switching power amplifier, compact structure, reasonable.
· 4 x 625 Watts into 4 Ohms,4 x 1,300 Watts into 8 Ohms
· Neutrik XLR*/speakon connectors.

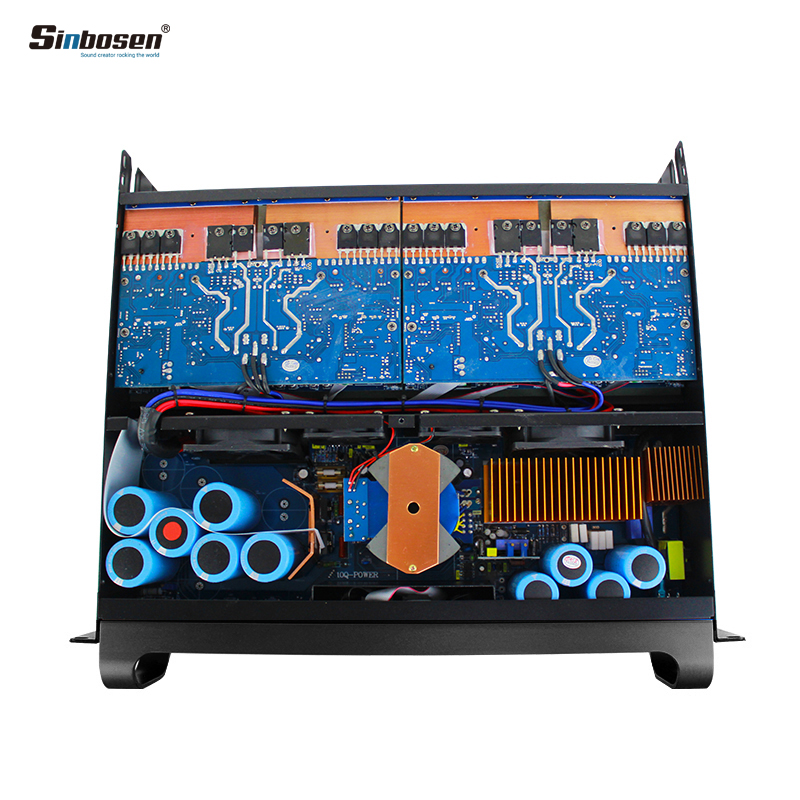

· Use Original Siemens high-quality capacitor 3300uf 200V.
· Use Original ONSEMI type PNP power output transistor.
· High-quality fans from TaiWan.
· Separately controllable on Gain.
· Scalable Voltage Peak Limiter (VPL).
· Bridge-mode operation for Touring Applications.
· Comprehensive protection scheme.
· Each channel with independent adjustable peak output voltage, the amplifier can be very easy to drive different power sizes speakers .
· Intelligent protection circuit provides advanced technology to protect the internal circuits and connected loads, can in extreme conditions to protect the amplifier and speakers.
 |
 |
 |
 |
 |
